SCUBA TANK STANDARD FILL YOKE/PRESSURE TESTER KIT
Ask for by Dealers, this kit consist of: 1- the fill body (3 ports 7/16 20 just like the Pneumatic Fill Yoke)
& 2- the Quick Bleed (so easy you can bleed with your little finger)
Since most dive Operations have plenty of yokes around, save money & enjoy the benefits of Quick Bleed
& the 3 Ports configuration of the unit.
Just drop our Kit in a yoke that you have (it will fit most from USD, Dacor, Sherwood , Tusa (as shown) etc.
It takes about 1 minute to install.
the Kit will also directly receive most high pressure Submersible Pressure Gauge which are 7/16 20 thread
Use the kit as a tool to calibrate your pressure gauges since you can screw 1 high precision gauge and the
tested gauge on the same unit side by side.

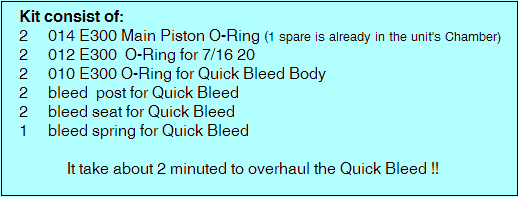

Kit consist of:
2 014 E300 Main Piston O-Ring (1 spare is already in the unit's Chamber)
2 012 E300 O-Ring for 7/16 20
2 010 E300 O-Ring for Quick Bleed Body
2 bleed post for Quick Bleed
2 bleed seat for Quick Bleed
1 bleed spring for Quick Bleed
It take about 2 minuted to overhaul the Quick Bleed !!
Others are charging over $40 just for the Push Bleed
Here you have the full Yoke Body & Bleed
